TOP CASE FITTING KIT SHAD TOP MASTER FOR HONDA 650 CB R 2019>2023, 650 CBR R 2019>2023 (H0CR61ST)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/shad_20251211092559.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/0/5/2/img/198052.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/0/5/2/img/198052.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/0/5/2/img/198052_2.jpg)
SHAD
In stock
 |
Reference | 198052 |
|
EAN code |
| Product Name | Fixations Top Case |
| Related Product Name | Fixations Top Box |
| Product Usage | Tous |
| Product model | TOP MASTER |
| Platine | M/B |
| Supplier reference | H0CR61ST |
| Packaging | vendu à l'unité |
| Weight with packaging | 3.2 kg |
| Volume with packaging | 27731 cm³ |

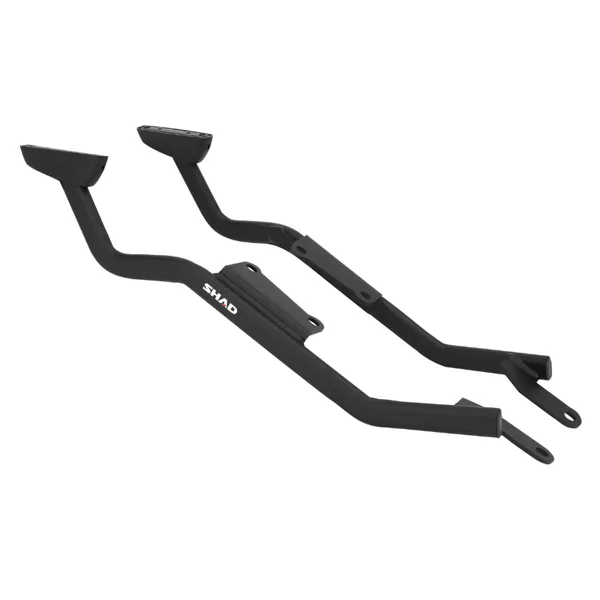

The SHAD Top Master mount allows a top case to be installed above the motorcycle. It is a fastener designed specifically for each motorcycle model, according to its own characteristics. The result is high quality, comfortable and safe, easy to assemble and disassemble.
To mount the top case on the motorcycle it is necessary to add the plate included in the SHAD top cases (except TR48/TR37) to this mounting.
Compatible with medium (D1B40PA) and large (D1B591PA) turntables valid for TR48/TR37/SH59X/SH58X/SH50/SH48/SH47/SH46/SH45/SH40/SH39 top cases. To install with SH37/SH34/SH33/SH29/SH26 it is necessary to install the medium plate.
WARNING: Mounting is not compatible with the aluminium frame.
| Product Name | Fixations Top Case |
| Related Product Name | Fixations Top Box |
| Product Usage | Tous |
| Product model | TOP MASTER |
| Platine | M/B |
| Supplier reference | H0CR61ST |
| Packaging | vendu à l'unité |
| Weight with packaging | 3.2 kg |
| Volume with packaging | 27731 cm³ |
