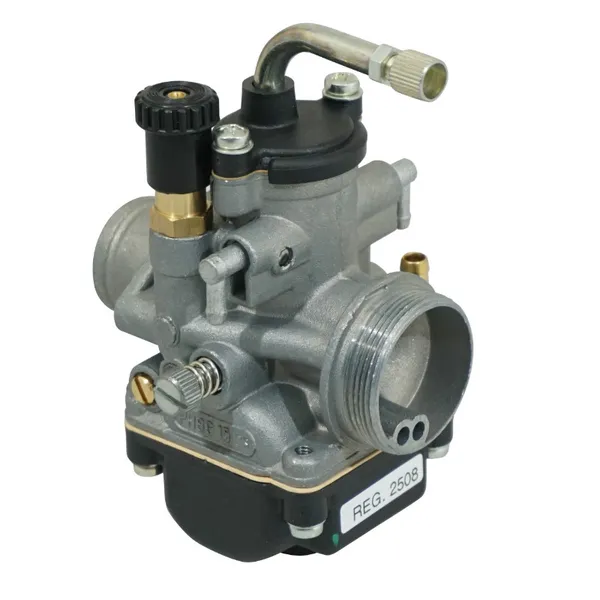

CARBURETTOR DELLORTO PHBG 15 BS (FITTING FLEXIBLE - WITHOUT LUBRICATION - WITHOUT VACUUM - CHOKE A PULL KNOB) (REF 2508)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/dellorto_20251211121839.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/3/5/3/img/108353.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/3/5/3/img/108353.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/3/5/3/img/108353_2.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/3/5/3/img/108353_3.jpg)
DELLORTO
In stock
 |
Reference | 108353 |
|
EAN code |
| Diameter | 15 mm |
| Version | MONTAGE SOUPLE |
| Product model | PHBG/BS |
| Product Name | Carburateur |
| Type | PHBG |
| Product Usage | Tous |
| Various Attributes | sans graissage, starter à tirette |
| Packaging | vendu à l'unité |
| Weight with packaging | 0.509 kg |
| Volume with packaging | 978 cm³ |
Flexible assembly, type A B G L R T U Z.
Without lubrication.
Pull starter.
Motor mounting diameter 25mm.
Air intake diameter M32X1.25.
Venturi 15
For mécaboîte-Moped 2-stroke engine.
| Diameter | 15 mm |
| Version | MONTAGE SOUPLE |
| Product model | PHBG/BS |
| Product Name | Carburateur |
| Type | PHBG |
| Product Usage | Tous |
| Various Attributes | sans graissage, starter à tirette |
| Packaging | vendu à l'unité |
| Weight with packaging | 0.509 kg |
| Volume with packaging | 978 cm³ |
